A340 A341 A343 AW30-43LE [85-25] Automatic Transmission Filter E H 2WD

When a pan drop service on an A340-family automatic transmission calls for a fresh Automatic Transmission Filter and a new bottom pan seal, this 2-piece set provides exactly those two items and nothing beyond them. What makes this set straightforward to specify is that both pieces are matched to the same application: the 3-bolt 2WD Automatic Transmission Filter and the duraprene bottom pan gasket are both selected for the A340 and AW30-43LE family, covering production from 1985 through current models.

The Automatic Transmission Filter is the correct 3-bolt fitment for 2WD units in this family. There is no universal trim or adapter required; it drops in where the stock was removed. The duraprene bottom pan gasket is cut to the A340E pan profile, which means it seats flat without the distortion that can cause seepage after torquing the pan bolts.

This set does not include friction discs, steel plates, bands, thrust washers, or any internal hard parts. It is intended for a pan drop and Automatic Transmission Filter change, not a full rebuild. If your repair order includes those components, they will need to be sourced separately. Reviewing your parts list before placing the order will prevent a return.

Each set is assembled here at REMCO, piece by piece. Both items are checked against the parts list before the box is closed, and that same list ships inside with the order. REMCO has been working in automatic transmissions since 1991, and that process has not changed.

Before ordering, confirm the transmission code is A340, A341, A343E, A343H, or AW30-43LE, that the vehicle is a 2WD application, and that the Automatic Transmission Filter mount is the 3-bolt configuration. Year coverage runs from 1985 to present. SKU.

• This 2-piece set covers the two most time-sensitive service items on an AW30 or A340 rebuild: the bottom pan gasket and the spin-on Automatic Transmission Filter, so the unit can be resealed and refilled without waiting on separate orders.
• This set does NOT include friction discs, steel plates, bands, solenoids, or any internal hard parts. If your job calls for those components, check your parts list before ordering to avoid a return trip.
• The duraprene pan gasket is cut specifically for the bottom pan of the A340 family, and the Automatic Transmission Filter is the correct 3-bolt, 2WD fitment for this application, so neither piece requires trimming or adaptation at the bench.
• Exact contents: 1 x A340E bottom pan duraprene gasket and 1 x A340E 2WD all 3-bolt Automatic Transmission Filter. Total shipped weight: 1 lb. SKU, catalog model A340 and AW30-43LE.
• Before ordering, confirm your unit code matches A340, A341, A343E, A343H, or AW30-43LE, that the application is 2WD, and that the Automatic Transmission Filter mount uses a 3-bolt pattern. Year coverage is 1985 to present.

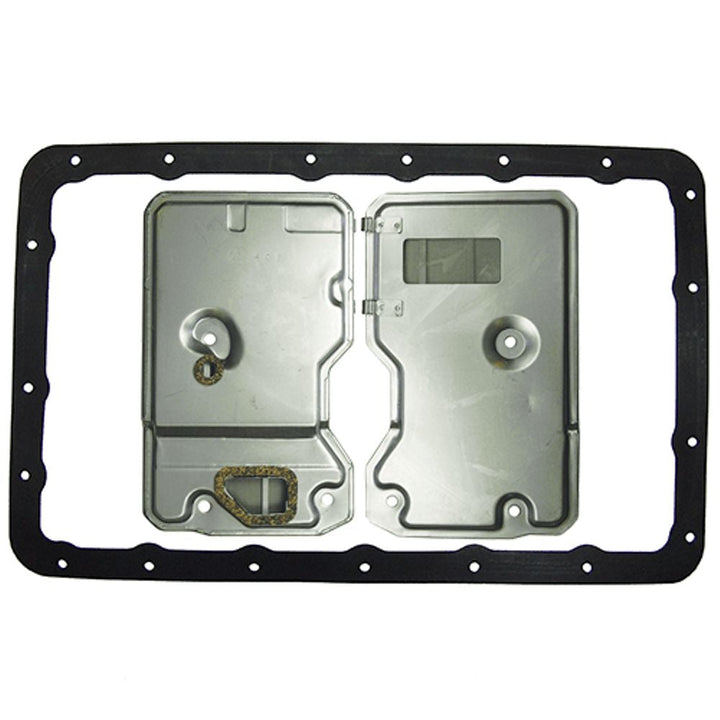

What's in the box

• 1 x Automatic Transmission Filter, 2WD All [3 Bolt] A340E
• 1 x Pan Gasket, A340E Bottom Pan Duraprene

Compatible vehicles

• Fits 4Runner [84-95], T100 - Pickup [93-94], Land Cruiser [95-98], Pickup [85-91], Trooper II [87-91], Comanche - Pickup [86-92], Sorento [03-04], GS 300 [93-97], LS 400 [90-97], LX 450 [96-97], LX 470 [98-02], SC 300 [92-00].
