When a B7ZA automatic transmission rebuild stalls because the parts order comes in short, the problem is usually a kit that did not account for all three steel clutch specifications this unit runs. This Master Rebuild Kit addresses that by putting 58 pieces across seven line items into one box: four distinct steel specifications, a full friction set, an Automatic Transmission Filter, and an overhaul gasket set, so the bench stays moving from tear-down through reassembly without a second order interrupting the job.
REMCO has been assembling automatic transmission kits since 1991, and this one is built the same way every other kit leaves the warehouse: components counted and placed by hand, then checked against the printed parts list that ships inside the box. The list travels with the kit so you can verify count on arrival before the unit is even on the stand.
The friction set is 20 pieces covering 1st, 2nd, 3rd, and 4th apply. The steels break into four groups that reflect how this transmission was engineered: 16 pieces at .079 inch, 24-tooth, 3.682 inside diameter for the 2nd clutch on MRVA, BZKA, MZKA, GPPA, and MCVA applications from 02-up; 12 pieces at .078 inch, 20-tooth wide, 3.670 inside diameter for B7TA, B7VA, and B7YA 2nd clutch from 99-up; 4 pieces at .078 inch, 20-tooth narrow, 3.677 inside diameter for 4th clutch on B7TA, B7YA, B7VA, and M7WA four-speed units; and 4 pieces at .091 inch, 24-tooth, 3.70 inside diameter for B6VA, BAXA, MAXA, and M6HA 4th clutch. The single Automatic Transmission Filter and the overhaul gasket set round out the seven line items.
What is not in this box: pistons, bands, bushings, and thrust washers are not part of this kit. Confirm those are sourced before the job starts. Verify your unit code and that the application year is 97 through 02 before placing the order.
- Covers friction and steel clutch packs, sealing, and filtering in one box so you are not chasing parts from multiple suppliers mid-rebuild.
- This kit does NOT include pistons, bands, bushings, or thrust washers. Review your parts list before ordering to confirm you have those items covered separately.
- Seven distinct line items span three steel specifications by diameter and tooth count: 2nd clutch steels in .079 24-tooth and .078 20-tooth wide-tooth versions, plus 4th clutch steels in narrow 20-tooth and 24-tooth cuts.
- Contents: 20 frictions, 16 steels (.079 24t 3.682 id), 12 steels (.078 20t wide 3.670 id), 4 steels (.078 20t narrow 3.677 id), 4 steels (.091 24t 3.70 id), 1 Automatic Transmission Filter, 1 overhaul gasket set. 58 pieces total. 4 lb.
- Before ordering, confirm your unit code is B7ZA and that the vehicle year falls within the 97-02 range. Steel specs vary by sub-model; match your clutch pack measurements to the line items listed above.

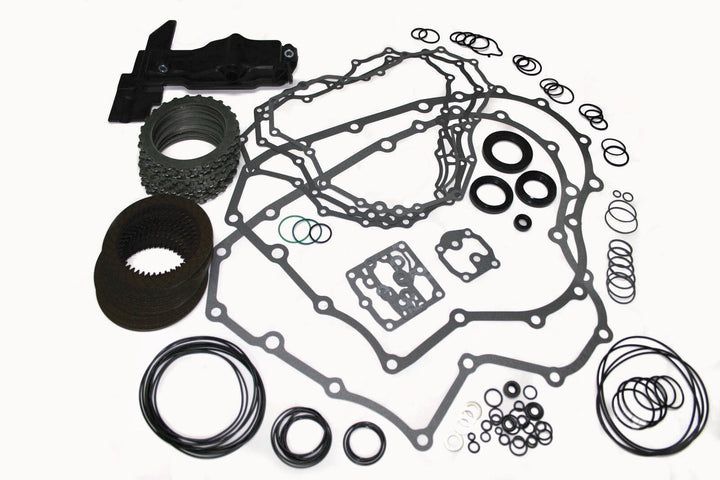

What's in the box
- 20 x Friction Clutch Plate, B7XA M7ZA 1st 2nd 3rd 4th
- 16 x Steel Plate, MRVA BZKA MZKA GPPA Mcva 2nd Clutch [.079" Thick 24t3.682" ID] 06
- 12 x Steel Plate, B7TA B7VA B7YA 2nd clu122mm [.078" Thick 20 Teeth Wide Tooth 3.670" ID]
- 4 x Steel Plate, B6VA BAXA MAXA M6HA 4th Clutch [.091" Thick] 24 Teeth [3.70" ID]
- 4 x Steel Plate, B7TA B7YA B7VA M7WA 4th Clutch 128mm [.078" Thick 20 Teeth Narrow 3.677" ID] 4-spd
- 1 x Automatic Transmission Filter, B7XA B7ZA M7ZA
- 1 x Overhaul Gasket Kit, B7TA B7XA MPZA B7YA B7VA M7ZA B7ZA C Transmission
Compatible vehicles
- B7TA, B7YA / B7VA / B7XA / M7ZA: V6 3.0L: CL[96-00] · V6 3.2L: TL[99]
- V6 3.0L: Accord[98-02] · V6 3.5L: Odyssey[99-01]
